Miniature Quick Connects
Plugs
The following series of miniature Quick Connect/Disconnect plugs are designed to accommodate a 0.100" (2.5mm) I.D., unless otherwise restricted, as with the small barb on the QC8020 or the small thread on the QC8070.
This series is manufactured to ISO 80369-5. These connectors are compatible with the 20KA series from Rectus(Parker).
Most components are manufactured from Brass rod (C36000) and electroless nickel plated. Stainless Steel 316 Versions are being added. Feel free to ask for a configuration not yet shown.
These stocked components are available with thru flow only.
Click on photo to enlarge. |
Part No. | Description |
---|---|---|

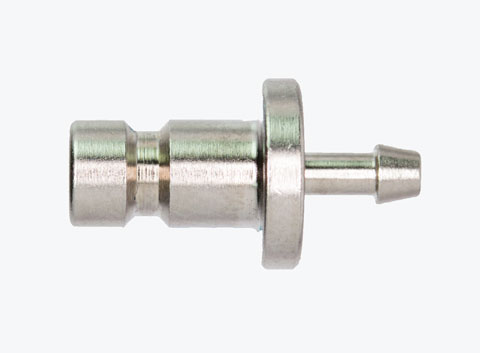

QC8010 | Plug to 0.115" O.D. barb | |
QC8020 | Plug to 0.165" O.D. barb | |
QC8030 | Plug to 0.200" O.D. barb | |
QC8040 | Plug to 0.256" O.D. barb | |

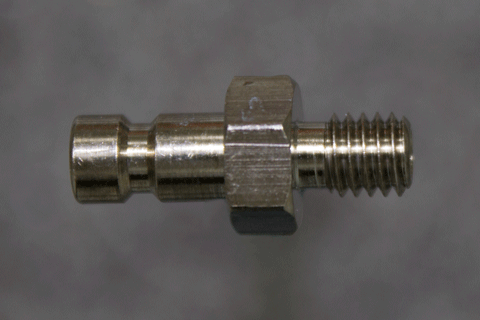

QC8070 | Plug to #10-32 male thread | |

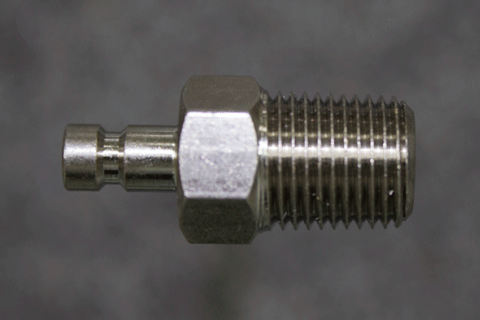

QC8090 | Plug to 1/8" NPT male | |

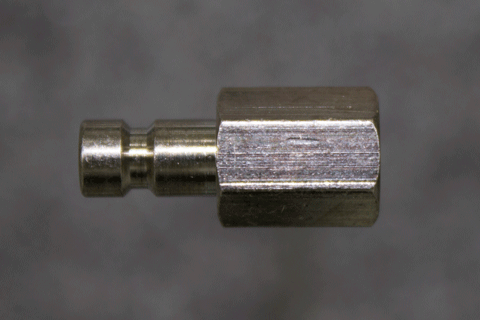

QC8110 | Plug to #10-32 female thread | |

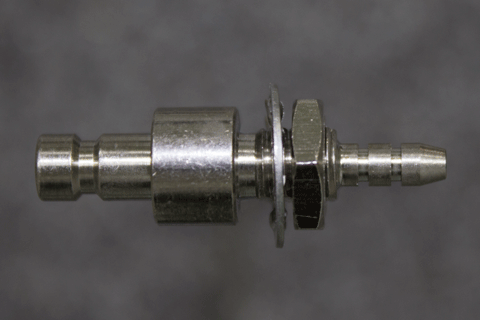

QC8130 | Plug to 0.125" O.D. barb, bulkhead | |

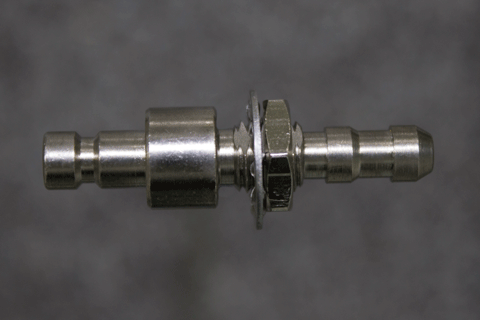

QC8140 | Plug to 0.195" O.D. barb, bulkhead | |

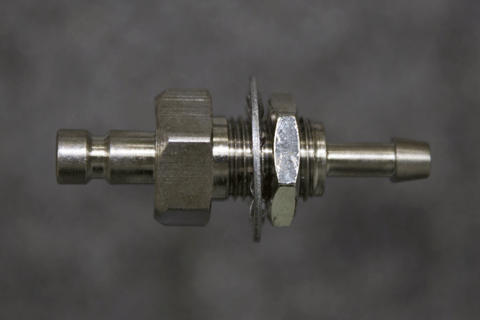

QC8150 | Plug to 0.165" O.D. barb, bulkhead | |
QC8160 | Plug to 0.200" O.D. barb, bulkhead | |

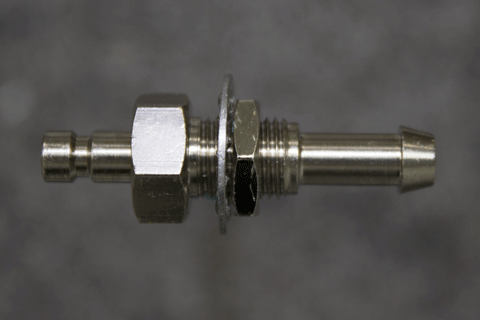

QC8170 | Plug to 0.256" O.D. barb, bulkhead |
